Coupling Components

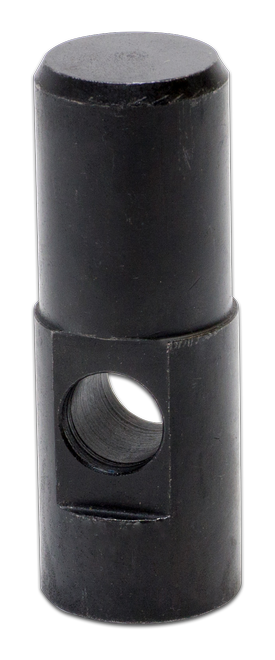

Sport Sport Material: 42 Cr Mo 4
Diameter: Ø 32 mm.
Length: 73 mm.
Coating: zinc nickel
 Koppelbolzen Koppelbolzen Material: ST 52-3
Diameter: Ø 31 mm. - Ø 10 mm.
Length: 134 mm.
Coating: cataphoresis coating
Other Process: Welding Bolzen Bolzen Material: C 45
Diameter: Ø 26 mm.
Length: 174,5 mm.
Coating: geomet coating

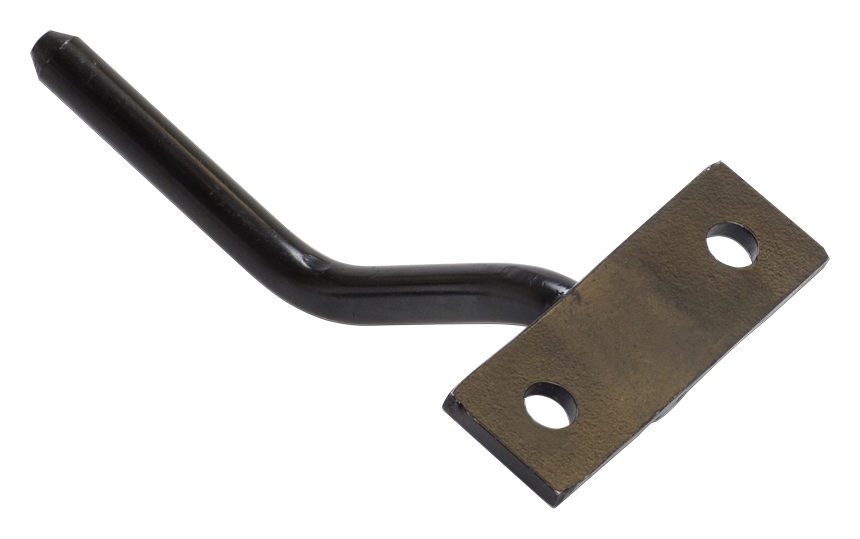

Other Process: Forging Halter Halter Malzemesi: ST 37-2
Çapı: Ø 8 mm.
Boyu: 110 mm.

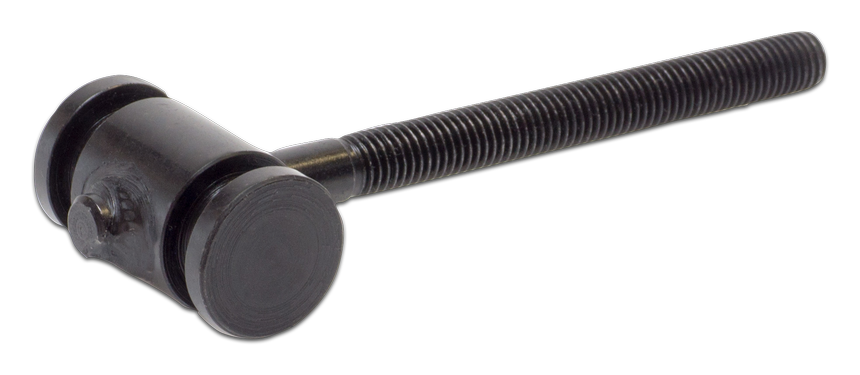

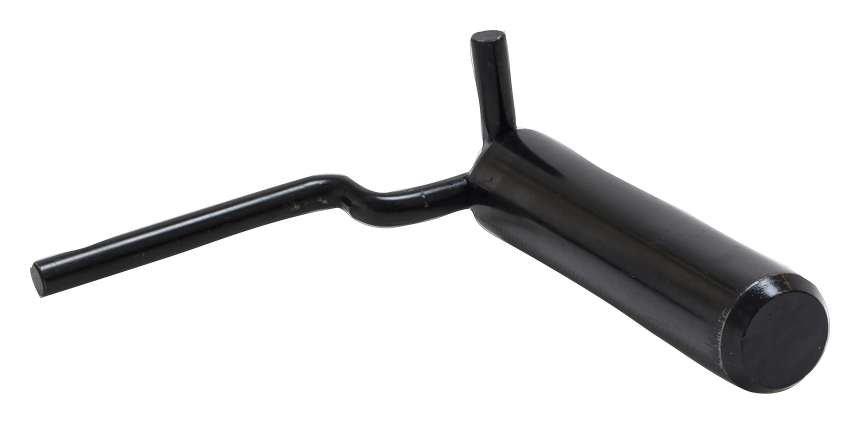

Kaplaması: kataforez kaplama Diğer İşlem: kaynak - pres Çekiç Çekiç Malzemesi: ST 37-2
Çapı: Ø 25 mm. - Ø 10 mm.
Boyu: 130 mm.
Kaplaması: çinko demir Diğer İşlem: kaynak Bolzen Bolzen Material: 41 Cr 4
Diameter: Ø 22 mm.
Length: 125 mm.
Coating: geomet coating

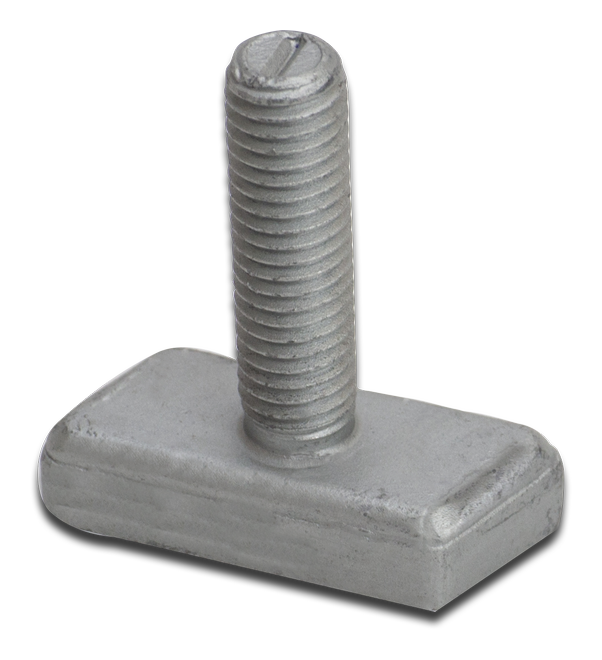

Other Process: Forging T Bolt T Bolt Material: 8:8
Diameter: 28 x 14 mm.
Length: 28 mm.
Coating: geomet coating

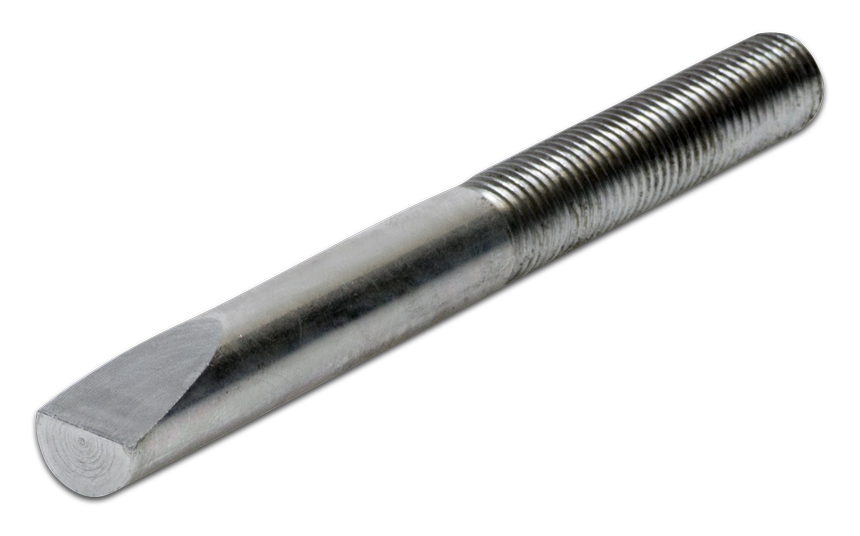

Other Process: Pounding Span Bolzen Span Bolzen Material: C 15
Diameter: Ø 12 mm.
Length: 125 mm.
Coating: zinc
Other Process: Tapping(Scrubbing) Feder Bolzen Feder Bolzen Material: 42 Cr Mo 4
Diameter: Ø 30 mm.
Length: 160 mm.
Coating: zinc phosphate
Other Process: Heat treatment - Induction

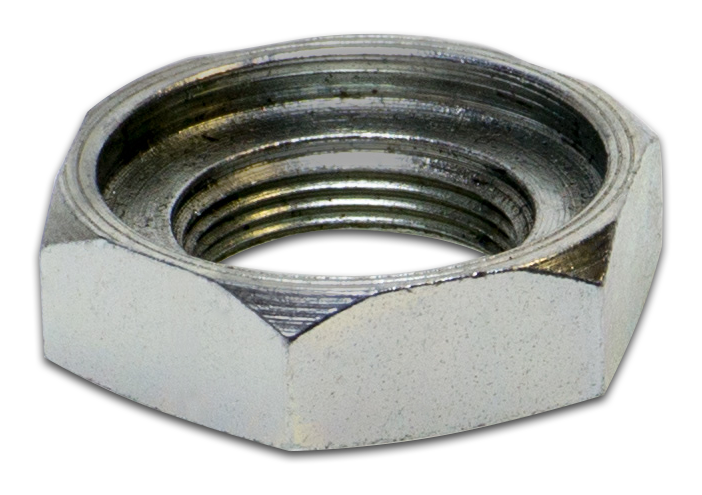

 Mutter Mutter Material: 9 SMn 28 - 304 Stainless Sheet Metal
Diameter: Hex 30 mm.
Length: 9 mm.
Coating: zinc
Other Process: Press - Montage
